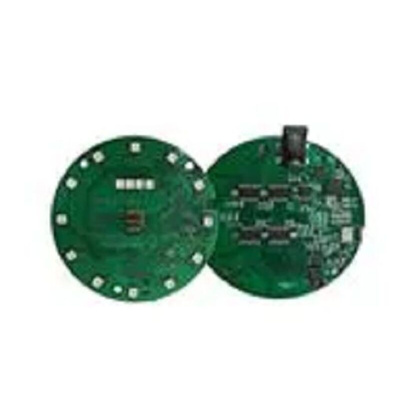

onsemi SECO-NCV7685RGB-GEVB, RGB Lighting Evaluation Board Bluetooth, LED Evaluation Board for NCV7685 for AV Display

The ON Semiconductor, an evaluation board for RGB LEDs lighting application with BLE in automotive which driven by NCV7685 and controlled by RSL10, It is also an interior or exterior lighting reference design for tail or ambient lights to realize general sequential or high end pixelated LEDs controlling in vehicle network, the user are prefer to use fixed address in multiple NCV7685 application, it leads to add one more procedure to pre−programming each chips address in mass production stage, the board conceived for use as a plug and play environment to testing.

Plug and Play switch and BLE mode to show animations
16 RGB LEDs (48 Channels), each current programmable sources up to 60 mA
Independent PWM duty cycle control for each channel
On−Chip 150,300,600 and 1200 Hz PWM
Logarithmic or linear independent PWM dimming
Diagnostic and protection against open load and under−voltage, over temperature
Dynamic addressing method for no worries in mass production
Rx sensitivity 94 dBm
Transmitting power −17 to +6 dBm
Arm Cortex M3 Processor and LPDSP32
AEC Q100 qualified and PPAP capable
