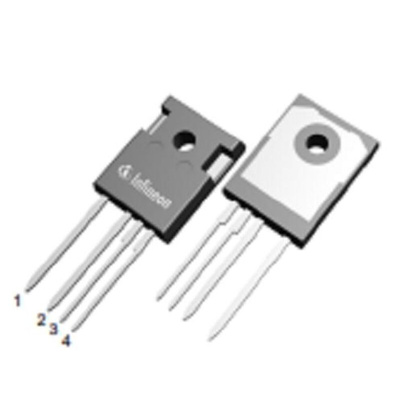

N-Channel MOSFET, 225 A, 1200 V, 4-Pin TO-247-4 Infineon IMZA120R007M1HXKSA1

The Infineon CoolSiC 1200 V, 7 mΩ SiC MOSFET in TO247-4 package build on a state of the art trench semiconductor process optimized to combine performance with reliability, these includes, the lowest gate charge and device capacitance levels seen in 1200 V switches, no reverse recovery losses of the internal commutation proof body diode, temperature independent low switching losses, and threshold-free on-state characteristic and the CoolSiC MOSFETs are ideal for hard and resonant switching topologies like power factor correction (PFC) circuits, bi-directional topologies and DC-DC converters or DC-AC inverters.

VDSS - 1200 V at T - 25°C
IDCC - 225 A at T - 25°C
RDS(on) - 7 mohm at VGS - 18 V, T - 25°C
Very low switching losses
Benchmark gate threshold voltage, VGS(th) - 4.2 V
Robust against parasitic turn on, 0 V turn-off gate voltage can be applied
Robust body diode for hard commutation
XT interconnection technology for best-in-class thermal performance

Datasheet - IMZA120R007M1HXKSA1
