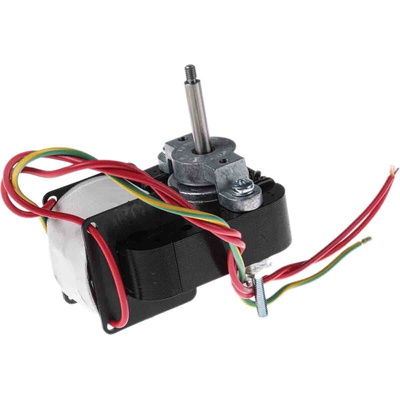

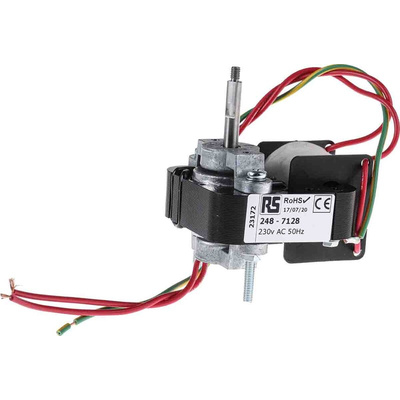

AC1003, Mellor Electric AC1000 Anti Clockwise Shaded Pole AC Motor, 19 W, 1 Phase, 2 Pole, 220 → 260 V, Двигатель

Shaded Pole Motor

A 240 Vac 50//60 Hz shaded pole motor with starting characteristics ideal for small loads such as air and liquid movement
The 6Ø x 25mm long stainless steel shaft extension is threaded M4 for the first 5 mm as well as having a 1 mm deep flat for 19 mm
The two pole windings are varnish impregnated to class F insulation, impedance protected. Non-reversing, self-starting, r.f. and t.v. interference-free. Sintered bronze bearings
Two versions are offered: clockwise (cw) and anti-clockwise (acw) rotation as viewed from extension shaft. Complete with 300 mm supply leads including earth. Both versions are UL 94-V0 rated and are self extinguishing within 10-15 seconds

Datasheet
