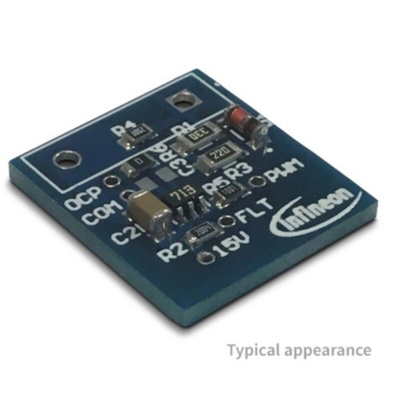

EVAL1ED44173N01BTOBO1, Infineon EVAL-1ED44173N01B MOSFET Gate Driver for 1ED44173N01B low-side gate driver for Switched-mode power circuit

The Infineon EiceDRIVER™ 25 is a V low-side gate driver with integrated over-current protection (OCP), fault reporting, and enable functionality. The adapter board easily connects into an existing switched-mode power circuit for fast in-circuit evaluation.

-0.246 V over-current threshold with accurate ±5% tolerance
Over-current detection with negative voltage input
Single pin for fault output and enable
Programmable fault clear time
Under voltage lockout for MOSFETs
CMOS Schmitt-triggered inputs
3.3 V, 5 V and 15 V input logic compatible
Output in phase with input
-10 Vdc negative Input capability of OCP pin

Datasheet - EVAL1ED44173N01BTOBO1
