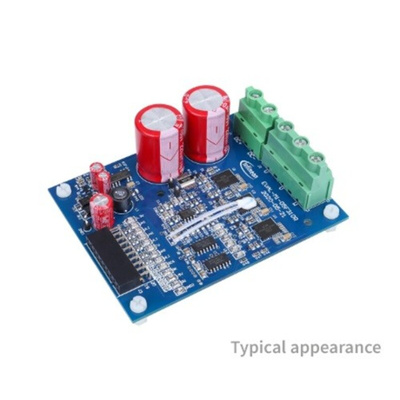

The Infineon evaluation board was developed to support customers during their first steps designing applications with IRSM005-310MH CIPOS™ nano power modules. As a part of iMOTION™ modular application design kit. The EVAL-M1-05F310R is a power evaluation board from the modular application design kit including M1 connector, which is the iMOTION™ standard interface, and three CIPOS™ Nano 100 V half-bridge modules for motor drive applications. In combination with either EVAL-M1-101T or other control boards with M1 connector compatible, it features and demonstrates Infineon’s CIPOS™ Nano IPM technology and advanced Motion Control Engine (MCE 2.0) technology for motors drive over the full speed range.
Ready to use DC power stage to drive 3-phase motor
3 x CIPOS™ Nano IPM on board
Nominal input voltage 30 ∼ 72 Vdc
Maximum 320 W output power without heatsink
Maximum 6.5 A output current per phase
Over current protection
Over temperature protection
Test pads with hooks to attach standard oscilloscope probes
Standard MADK M1 20pin interface connector
