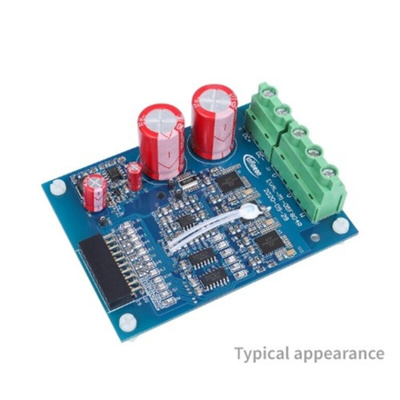

The Infineon evaluation was developed to support customers during their first steps designing applications with IRSM005-800MH CIPOS™ nano power modules. As a part of iMOTION™ modular application design kit, EVAL-M1-05F804R is a power evaluation board from the modular application design kit including M1 connector, which is the iMOTION™ standard interface, and three CIPOS™ Nano 40 V half-bridge modules for motor drive applications. In combination with either EVAL-M1-101T or other control boards with M1 connector compatible, it features and demonstrates Infineon’s CIPOS™ Nano IPM technology and advanced Motion Control Engine (MCE 2.0) technology for motors drive over the full speed range.
Ready to use DC power stage to drive 3-phase motor
3 x CIPOS™ Nano IPM on board
Nominal input voltage 6 ∼ 30 Vdc
Maximum 240 W output power without heatsink
Maximum 10.2 A output current per phase
Over current protection
Over temperature protection
Test pads with hooks to attach standard oscilloscope probes
Standard MADK M1 20pin interface connector
Datasheet - EVALM105F804RTOBO1| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
