Control Board for iMOTION™ Modular Application Design Kit (MADK)

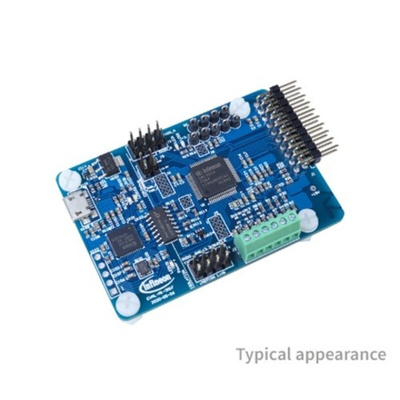

EVAL-M1-301F is a Control Board for the iMOTION™ Modular Application Design Kit (MADK) platform. It is powered by the IMC301A-F064 iMOTION™ Motor Control IC featuring advanced Motor Control Engine (MCE), that enables state-of-the-art sensorless or sensor based Field Oriented Control (FOC), without need for any coding. IMC301A-F064 is a part of the iMOTION™ IMC300 series, which combines the well established iMOTION™ motor control IC platform with an additional Arm® Cortex® M0 based microcontroller.
This control board can be combined with any iMOTION™ MADK power board with M1 connector, to create a powerful motor inverter system.
Before setting up and running the motor control system, the user needs to download following files from the iMOTION™ Tools & Software:
- IMC301A-F064 MCE Software Package, containing the latest MCE firmware image, corresponding default configuration files and release notes.
- MCEWizard and MCEDesigner PC tools which are required for system configuring, controlling, tuning and monitoring.
User should check this page regularly for updates on MCE firmware or iMOTION™ PC tools. Please refer to the EVAL-M1-301F User Manual for more information. Get your motor running in less than 1 hour! EVAL-M1-301F, in combination with matching power boards from iMOTION™ MADK Platform, enables rapid prototyping of various inverterized motor control systems, for example fans, pumps and compressors.
Summary of Features
- Field-proven Advanced Motion Control Engine (MCE)
- Single-shunt or leg-shunt current measurement
- Sensorless or hall based operation
- Integrated protection features
- Additonal MCU based on Arm® Cortex® M0 core
- Galvanically isolated on-board-interface to MCE and MCU
Benefits
- Easy motor parametrization and tuning using MCEWizard and MCEDesigner tools
- Fast time to market – No coding required for motor and PFC control functions
- Growing number of iMOTION™ MADK power boards with matching M1 platform interface
- Full flexibility for custom communication and system functionality
