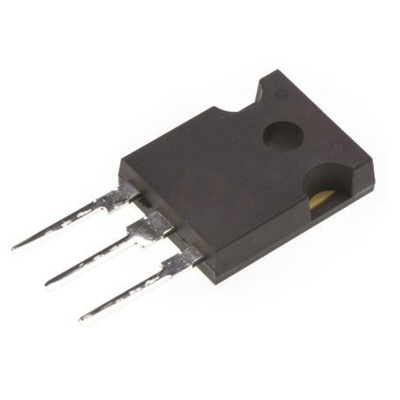

STMicroelectronics TN4050HP-12WY, Thyristor 1200V, 25A 40A

The STMicroelectronics 1200V, 40A automotive grade SCR thyristor designed for applications such as automotive on board and stationary battery chargers. This SCR Thyristor, rated for a 40 A RMS power switching, offers superior performances in peak voltage robustness up to 400 V sine wave pulse. It's key features allow the design of functions such as a 56 A RMS AC switch and a 50 A AC-DC controlled rectifier-bridge. This device is available in TO-247 package, ideal for a maximum thermal performance.

AEC-Q101 qualified
High junction temperature: 150 °C
AC off state voltage: +/- 1200 V
Nominal on-state RMS current: 40 ARMS
High noise immunity: 1000 V/μs
Max. gate triggering current: 50 mA
ECOPACK2 compliant component

Datasheet - TN4050HP-12WY
