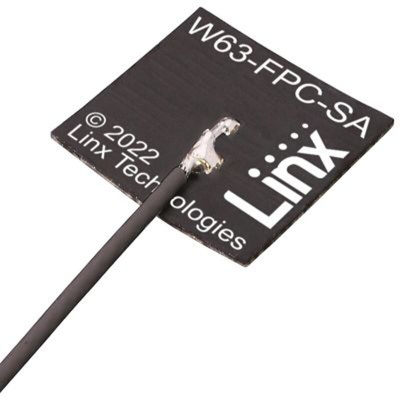

The Linx Technologies ANT-W63-FPC-SAH series antennas are 12 mm x 12 mm adhesive flexible printed circuit (FPC) antennas for WiFi 6/WiFi 6E applications in the 2.4 GHz, 5 GHz and 6 GHz bands. The ANT-W63-FPC-SAH antennas provide a ground plane independent dipole internal/ embedded antenna solution. The flexibility and adhesive backing make the ANT-W63-FPC-SAH series easy to mount in RF transparent (e.g. plastic) enclosures, enabling environmental sealing and for protection from antenna damage. Connection is made to the radio via a coaxial cable terminated in an MHF1/U.FL-type plug (female socket), or MHF4 plug (female socket) connector.
Performance at 5.150 GHz to 5.895 GHz
VSWR ≤ 3.4
Peak Gain 7.2 dBi
Efficiency 64%
Performance at 5.950 GHz to 7.125 GHz
VSWR ≤ 2.4
Peak Gain 6.3 dBi
Efficiency 53%
Ground plane independent dipole antenna
Compact, low-profile
12.4 mm x 12.0 mm x 0.1 mm
Adhesive backing permanently adheres to non metal enclosures using 3M 467MP™/200MP adhesive
Flexible to fit in challenging enclosures
Datasheet - ANTW63 FPC SAH50M4| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
