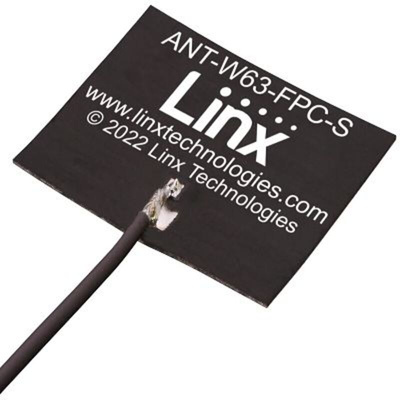

The Linx Technologies ANT-W63-FPC-SH series antennas are 25 mm x 20 mm adhesive flexible printed circuit (FPC) antennas for WiFi 6/WiFi 6E applications in the 2.4 GHz, 5 GHz and 6 GHz bands. The ANT-W63-FPC-SH antennas provide a ground plane independent dipole internal/embedded antenna solution. The flexibility and adhesive backing makes the ANT-W63-FPC-SH series easy to mount in RF transparent (e.g. plastic) enclosures, enabling environmental sealing and for protection from antenna damage. Connection is made to the radio via a coaxial cable terminated in an MHF1/U.FL-type plug (female socket), or MHF4 plug (female socket) connector.
Performance at 2.4 GHz to 2.5 GHz
VSWR ≤ 1.8
Peak Gain 5.5 dBi
Efficiency 85%
Performance at 5.950 GHz to 7.125 GHz
VSWR ≤ 1.5
Peak Gain 7.8 dBi
Efficiency 76%
Ground plane independent dipole antenna
Compact, low-profile
25.3 mm x 20.3 mm x 0.1 mm
Adhesive backing permanently adheres to non metal enclosures using 3M 467MP™/200MP adhesive
Flexible to fit in challenging enclosures
