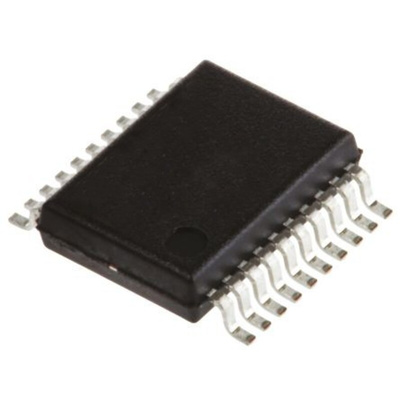

Renesas Electronics 74FCT3807APYGI8, Clock Buffer CMOS, 1-Input, 20-Pin SSOP

The Renesas Electronics FCT3807/A 3.3V clock driver is built using advanced dual metal CMOS technology. This low skew clock driver offers 1:10 fan-out. The large fan-out from a single input reduces loading on the preceding driver and provides an efficient clock distribution network. The FCT3807/A offers low capacitance inputs with hysteresis for improved noise margins. Multiple power and grounds reduce noise. Typical applications are clock and signal distribution.

0.5 MICRON CMOS Technology
Guaranteed low skew < 350ps (max.)
Very low duty cycle distortion < 350ps (max.)
High speed: propagation delay < 3ns (max.)
Very low CMOS power levels
TTL compatible inputs and outputs
1:10 fan-out
Maximum output rise and fall time < 1.5ns (max.)
Low input capacitance: 4.5pF typical
VCC = 3.3V ± 0.3V
Inputs can be driven from 3.3V or 5V components
Available in SSOP, SOIC, and QSOP packages

Datasheet - 74FCT3807APYGI8
