The Renesas Electronics 74LVC162244A 16-bit buffer/driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters and can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. All pins of the 74LVC162244A can be driven from either 3.3V or 5V devices which allows the use of the device as a translator in a mixed 3.3V/5V supply system. The 74LVC162244A operates at -40C to +85C.
Typical tSK(o) (Output Skew) < 250ps
ESD > 2000V per MIL-STD-883, Method 3015
> 200V using machine model (C = 200pF, R = 0)
VCC = 3.3V ± 0.3V, Normal Range
VCC = 2.7V to 3.6V, Extended Range
CMOS power levels (0.4 uW typ. static)
All inputs, outputs, and I/O are 5V tolerant
Supports hot insertion

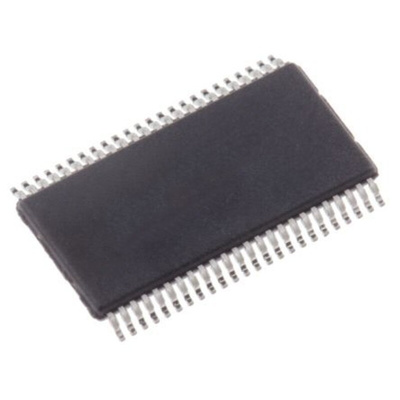

Available in 48 pin SSOP, TSSOP, and TVSOP packages
Datasheet - 74LVC162244APAG| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
