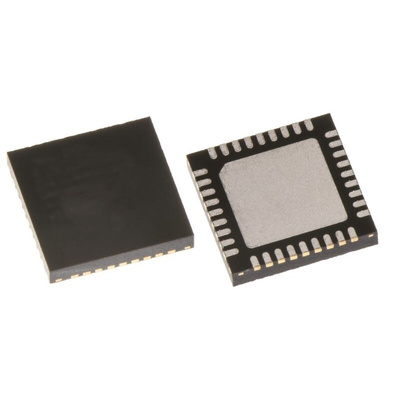

Renesas Electronics 9ZX21200AKLF, Quad-Channel Schmitt Trigger Buffer

The Renesas Electronics 9ZX21200 is a small-footprint 12-output differential buffer that meets all the performance requirements of the Intel DB1200Z specification. The 9ZX21200 is backwards compatible to PCIe Gen1 and Gen2 applications. A fixed, internal feedback path maintains low drift for critical QPI applications. In bypass mode, the 9ZX21200 can provide outputs up to 150MHz.

12 - 0.7V HCSL differential output pairs
Phase jitter: PCIe Gen3 < 1ps rms
Phase jitter: PCIe Gen2 < 3.1ps rms
Phase jitter: PCIe Gen1 < 86ps peak to peak
Phase jitter: QPI 9.6GT/s < 0.2ps rmsSupports zero delay buffer mode and fan-out mode
Bandwidth programming available
9 selectable SMBus Addresses
4 OE# pins90-147 MHz operation in PLL mode
33-150 MHz operation in Bypass mode

Datasheet - 9ZX21200AKLF
