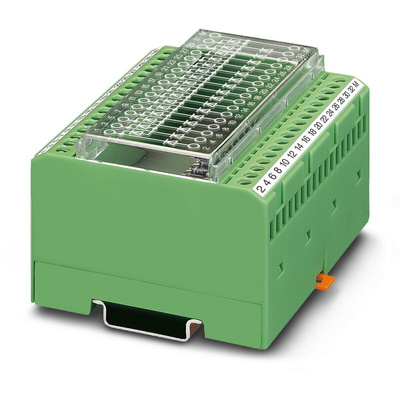

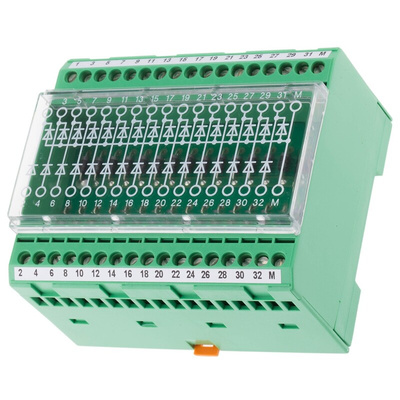

2954785, Phoenix Contact EMG 90-DIO 32M/LP Series Green Modular Terminal Block, 0.2 → 4mm², Screw Termination

Phoenix Contact Diode Block, 24 to 12AWG, Screw Termination - EMG 90-DIO 32M/LP - 2954785

Get lamp test results you can rely on with this DIN rail diode block from Phoenix Contact. You can mount it in your electrical switchboard and use it to check when electricity is present in a group of circuits. When there's an electrical signal, the circuit's associated diode lights up so you can easily see what's happening. The module is structured to decouple the individual signals from one another, so you won't have to worry about energy transfer giving you false readings.
Built to compact dimensions of 90 (W) x 75 (H) x 55mm (D), with 16 pairs of contacts for efficiency, it's a useful choice for busy setups. It can be mounted in any position, in rows with zero spacing. Screw connections give you a firm hold, even when the module is subjected to vibration.

Features & Benefits

• Operating temperature range of -20°C to +50°C means it can withstand harsh industrial environments
• Circuit diagram on front face for easy installation
• Voltage rating of 250VAC makes it suitable for use with the UK mains supply
• Handles conductor cross-sections from 24 to 12AWG for versatile use
