Linx ANT-2.4-MSA-TH1 PCB WiFi Antenna with UFL Connector, WiFi

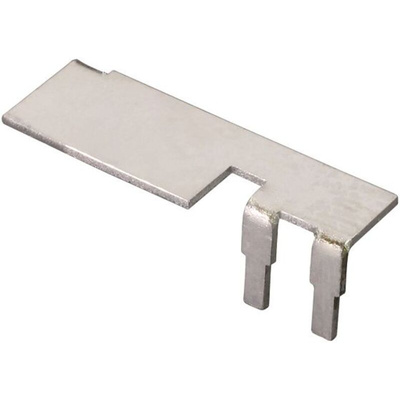

The Linx stamped metal antenna designed for 2.4 GHz ISM applications including Bluetooth and ZigBee, as well as single-band Wi-Fi and it exhibits excellent performance in a compact size 16.7 mm x 5.8 mm, it is packaged in trays and is designed for through-hole mounting directly to a printed circuit board.

MSA series
1/4 Wave dipole type
Stamped metal mechanical style
Monopole electrical type
Frequency range 2400 - 2485 MHz
Impedance 50 ohms
VSWR 1.3
Power 1 Watt
Number of bands 1
Solder termination
Through hole mounting type
Applications Bluetooth, ZigBee, 802.15.4, ISM, Wi-Fi 4, 802.11
Return loss -17.6 dB
Pin antenna connector type
Height 2.8 mm
Length 16.7 mm
Width 5.8 mm
Omnidirectional radiation pattern
Linear polarization
1/4 wavelength
0.3 g weight
Associated products ANT-2.4-FPC-SA100HM4, ANT-2.4-FPC-S100HM4, ANT-2.4-uSP, ANT-DB1-nSP250-T, ANT-2.45-CHP-T, ANT-2.4-JJB-ST, ANT-2.4-JJB-RA

Datasheet - ANT-2.4-MSA-TH1
