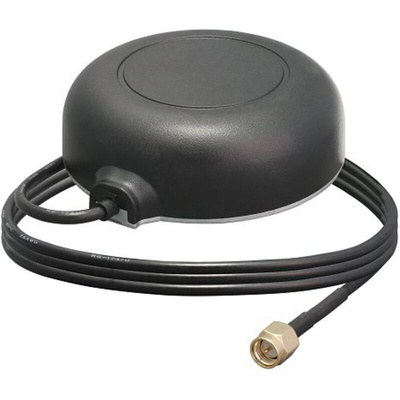

Linx ANT-GNRM-L125A-3 Round GPS Antenna with SMA Male Connector, GPS

The Linx GNRM-L125A is a magnetic-mount global navigation satellite system (GNSS) antenna with integrated low noise amplifier (LNA), supporting GPS, Galileo, GLONASS, Beidou, NavIC and QZSS systems in the L1/E1/B1, L2/E5/B2B and L5/E5/ B2A bands and the LNA provides high gain with a low noise figure also the antenna terminates in an SMA plug (male pin) connector on 1 meter, 3 meter or 5 meter lengths of RG-174/U coaxial cable.

Active GNSS type
Protocol GNSS
Module mechanical style
Electrical type radiating patch
Center Frequency 1176 MHz, 1207 MHz, 1228 MHz, 1248 MHz, 1561 MHz, 1575 MHz, 1602 MHz
Frequency range 1164 MHz ∼ 1189 MHz, 1196 MHz ∼ 1250 MHz, 1559 MHz ∼ 1606 MHz
Gain 29.8, 31.5, 31.0, 23.3, 30.7, 31.7, 30.6 dBi
Impedance 50 Ohms
VSWR 1.4, 1.6, 1.6, 1.5, 1.2, 1.2, 1.3
Minimum operating temperature -40 °C
Maximum operating temperature +85 °C
Number of bands 7
SMA termination
Return loss -15.5, -12.7, -12.7, -13.9, -20.8, -20.8, -17.6 dB
3 m cable length
RG-174/U cable type
SMA Plug connector type
Ingress protection IP67
RHCP polarization
1/2 wavelength

Datasheet - ANT-GNRM-L125A-3
