Linx ANT-GNRM-L12A-3 Square GPS Antenna with SMA Male Connector, GPS

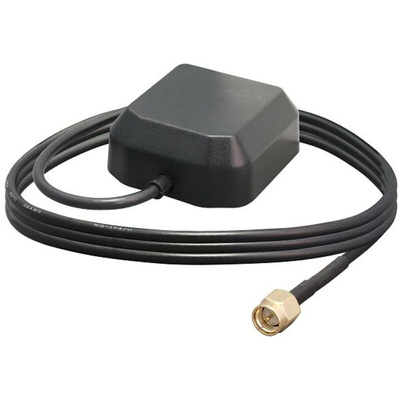

The Linx GNRM-L12A is a magnetic-mount global navigation satellite system (GNSS) antenna with integrated low noise amplifier (LNA), supporting GPS, Galileo, GLONASS, Beidou, NavIC and QZSS systems in the L1/E1/B1 and L2/E5/B2B bands and the LNA provides high gain with a low noise figure also the antenna terminates in an SMA plug (male pin) connector on 1 meter, 3 meter or 5 meter lengths of RG-174/U coaxial cable.

Active GNSS type
Protocol GNSS
Module mechanical style
Electrical type radiating patch
Center Frequency 1207 MHz, 1228 MHz, 1248 MHz, 1561 MHz, 1575 MHz, 1602 MHz
Frequency range 1196 MHz ∼ 1250 MHz, 1559 MHz ∼ 1606 MHz
Gain 25, 27.4, 23.4, 28.4, 32.4, 32.2 dBi
Impedance 50 Ohms
VSWR 1.7, 1.6, 1.1, 1.5, 1.5, 1.2
Minimum operating temperature -40 °C
Maximum operating temperature +85 °C
Number of bands 6
SMA termination
Return loss -11.7, -12.7, -26.4, -13.9, -13.9, -20.8 dB
3 m cable length
RG-174/U cable type
SMA Plug connector type
Ingress protection IP67
Length 40.5 mm
Height 16.3 mm
Width 38 mm
RHCP polarization
1/2 wavelength
77.4 g weight
Applications GPS, Galileo, GLONASS, QZSS, Beidou, Navigation
Associated products ANT-GNRM-L15A-1, ANT-GNRM-L125A-1, ANT-GPS-SH2
Keywords GPS, Galileo, GLONASS, COMPASS, Beidou, QZSS, NavIC, IRNSS, B1I, B1C, E1, L1C, L1C/A, L1, L3, B2B, E5b, L2, L2C, B2A GNSS, Navigation, Global Navigation Satellite System

Datasheet - ANT-GNRM-L12A-3
