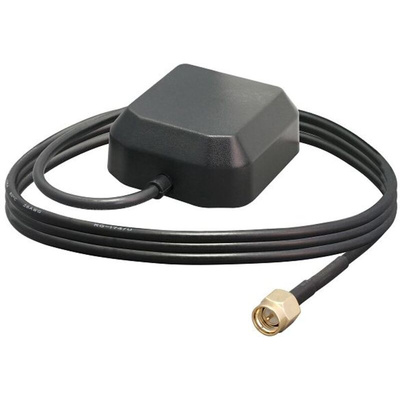

Linx ANT-GNRM-L15A-3 Square GPS Antenna with SMA Male Connector, GPS

The Linx GNRM-L15A is a magnetic-mount global navigation satellite system (GNSS) antenna with integrated low noise amplifier (LNA), supporting GPS, Galileo, GLONASS, Beidou, NavIC and QZSS systems in the L1/E1/B1 and L5/E5/B2A bands and the LNA provides high gain with a low noise figure also the antenna terminates in an SMA plug (male pin) connector on 1 meter, 3 meter or 5 meter lengths of RG-174/U coaxial cable.

Active GNSS type
Protocol GNSS
Module mechanical style
Electrical type radiating patch
Center Frequency 1176 MHz, 1561 MHz, 1575 MHz, 1602 MHz
Frequency range 1164 MHz ∼ 1189 MHz, 1559 MHz ∼ 1606 MHz
Gain 28.9, 27.2, 30.5, 30.5 dBi
Impedance 50 Ohms
VSWR 1.3, 1.3, 1.3, 1.2
Minimum operating temperature -40 °C
Maximum operating temperature +85 °C
Number of bands 4
SMA termination
Return loss -17.6, -17.6, -17.6, -20.8 dB
3 m cable length
RG-174/U cable type
SMA Plug connector type
Ingress protection IP67
Length 40.5 mm
Height 16.3 mm
Width 38 mm
RHCP polarization
1/2 wavelength
77.4 g weight
Application GPS, Galileo, GLONASS, QZSS, Beidou, Navigation
