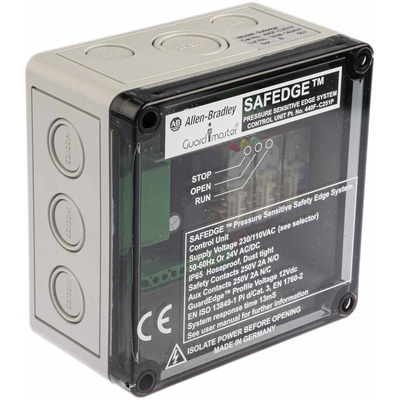

440F-C251P, Rockwell Automation Dual-Channel Safety Mat/Edge Safety Relay, 24 V dc, 110 → 230V ac, 2 Safety Contacts, Реле безопасности

Safedge Controller, Surface Mount

EC type approved (applies when Safedge profiles are used in conjunction with a Safedge Evaluator)
May be cut to size and fit
Corner and straight connectors are "active" components - no "dead" zones
The Safedge Evaluator monitors the status of the Safedge profile and provides an output of two fully cross monitored relays with complete redundancy
One Safedge Evaluator unit monitors up to 50m Safedge profile
Two safety relay outputs
Changeover auxiliary relay
Auto/manual reset
Indicators for RUN, STOP and FAULT conditions
Provides contactor monitoring
Selectable input voltage
Control circuit voltage - all relay outputs are volt free
IP65 rated
Dimensions: H130mm, W130mm, D75mm

Rockwell Automation Safety Relay, Dual Channel, 2500V Impulse Withstand Voltage, 13ms System Response Time - 440F-C251P

Use this Rockwell Automation safety relay to monitor and control your industrial equipment's edge sensing systems. It's designed for use with SafeEdge sensors and reacts to detected faults, preventing injury to users and damage to machinery. Polycarbonate housing provides impact and wear resistance to make this relay suitable for use in harsh environments. It can function on both AC and DC voltage supplies so it's a versatile choice for your industrial operations. You'll find devices like this one used to control power-operated doors and automated vehicles.

• Compact dimensions of 130 (height) x 130 (width) x 75mm (depth) make it suitable for installation in confined spaces
• M2 spring action terminals for simple, tool-free conductor connections
• Broad operating temperature range of -10°C to + 55°C for use in demanding settings
• Integrated 2A quick-acting fuse provides short-circuit protection for electrical safety

Standards and Certifications

• TÜV
• CE
• cULus
• RoHS

How do I mount this safety relay?

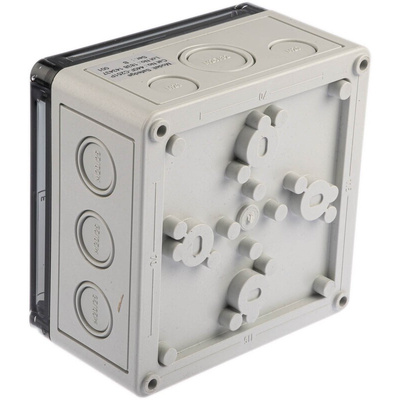

This safety relay is designed to be surface mounted onto your equipment. It comes with four holes to let you secure it using M4 screws.
