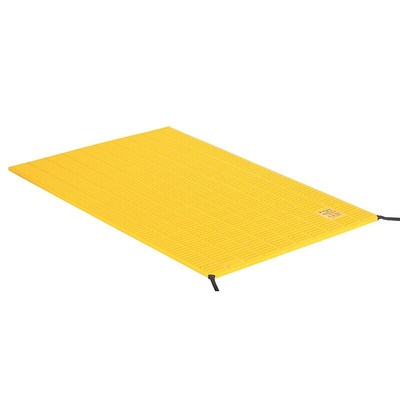

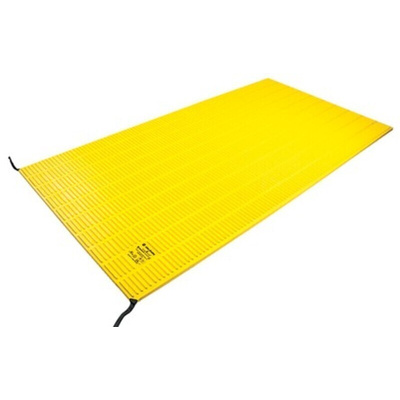

440F-M1530BYNN, Allen Bradley Guardmaster MatGuard 440-F Safety Mat, Plastisol Vinyl 1.5m x 750mm, Коврик

Allen Bradley Guardmaster Safety Mat, 1.5m Length, 4500psi Maximum Pressure - 440F-M1530BYNN

Prevent unauthorised access to hazardous areas using this safety mat from Rockwell Automation's Allen Bradley Guardmaster range. This device comes pre-wired and can be linked to other mats to form a wide protective barrier. It's made from durable plastisol vinyl and trimmed with sturdy aluminium, providing resistance to wear and corrosion and helping extend its service life. As it has a broad operating temperature range between -25ºC and +55ºC, you can use it in challenging settings.

Features and Benefits

• IP67 rating means it's dust-proof and handles immersion in 1m of water for 30 minutes
• Mechanical life of up to 10 million operations, so you can rely on it for long-term use
• Supply voltage of 24V DC for use in low-voltage applications

Standards and Certifications

• CE
• TUV
• C-UL-US
• CSA

How does this safety mat work?

IP67 rated
CE certified
TUV certified
CSA certified
cULus approved
EN1760-1
EN954-1
ISO 13849-1
IEC/EN60204-1
ANSI RIA R15.06
ANSI/B11.19
AS4024.5

When a person steps on the mat and puts pressure on its surface, the controller sends a shutdown signal to attached equipment, ensuring user safety. When the weight is removed, the control unit sends a start-up signal to the machinery.
