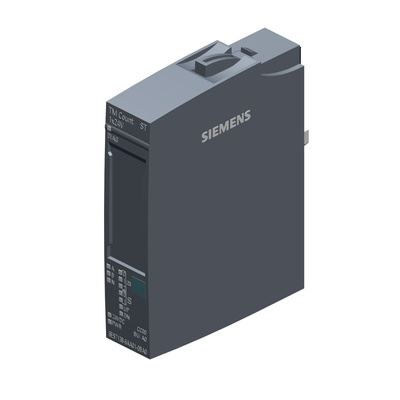

6ES71386AA012BA0, Siemens 6ES713 Series Counter for Use with SIMATIC I/O System

The Siemens SIMATIC counter module for ET 200SP. The TM Count 1x24V counter module detects high-speed signals with high frequencies and returns the counter reading and the current speed to the control. The counter control ensures a precise counter result and rapid response in the system via integrated digital input and output signals. Comprehensive parameterization options provide optimum adaptation to the task at hand and reduce control load.

24 V encoder signals A, B and N from P, M or push-pull-switching encoders and sensors
24 V encoder supply output, short-circuit proof
3 digital inputs for controlling the count operation, for saving or for setting the count value
2 digital outputs for fast reactions regardless of the counter status or measured value
Counting frequency 200 kHz

Datasheet - 6ES71386AA012BA0
