6ES71386BA010BA0, Siemens 6ES713 Series Counter for Use with SIMATIC I/O System

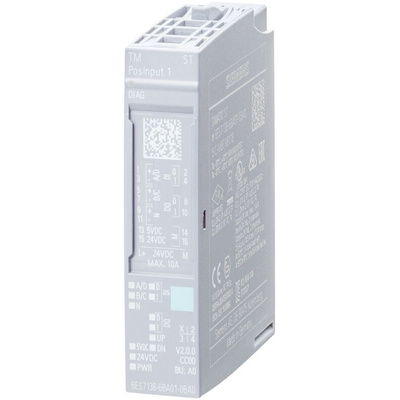

The Siemens SIMATIC counter and position detection module for ET 200SP. The TM PosInput 1 counting and position detection module detects fast signals with high frequencies and returns the counter reading or position and the current speed to the controller. The counter control ensures a precise counter result and rapid response in the system via integrated digital input and output signals. Comprehensive parameterization options provide optimum adaptation to the task at hand and reduce control load.

SSI interface with clock and data for RS422 differential signals
24 V encoder supply, short-circuit proof
5 V encoder supply, short-circuit proof
2 digital inputs for controlling the counting process, for saving or setting the counter or position value
2 digital outputs for fast reactions depending on the counter reading, position value or measured value

Datasheet - 6ES71386BA010BA0
