RS PRO Lever Microswitch, Screw Terminal, 16A @ 250V ac , DPDT, IP40

RS PRO 2NO/2NC Heavy Duty Miniature Micro Switch (16 A @ 125/250V)

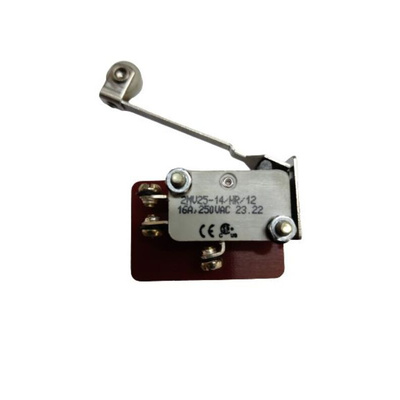

The RS PRO versatile miniature Roller Micro Switch is suitable for use with heavy duty applications and is compatible with all industry standard V3 switches. Featuring a Stainless Steel frictionless pivoted lever with free running Nylon roller actuator for a smooth and consistent action.
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Roller switch ideal for a range of environments and applications.
RS PRO versatile Micro Switches are ideal for many heavy-duty applications including automotive vending machines, telecommunications equipment, security instrumentation, conveyors and machine tools.

Features and Benefits

• Roller actuator


• Stainless Steel Lever (49.5mm radius)


• Contact Configuration DPDT


• Contact Arrangement 2NO + 2NC


• 30% Glass filled flame retardant thermoplastic case (UL94 V0)


• Positive snap action


• Silver contacts


• Copper alloy Silver plated M3 Screw terminals


• Total weight of 28g


• Side mounted via two M3x35mm (screws, nuts and lock washers supplied)

Approvals and Standards: CE, CSA, UKCA, IEC 1508-1
