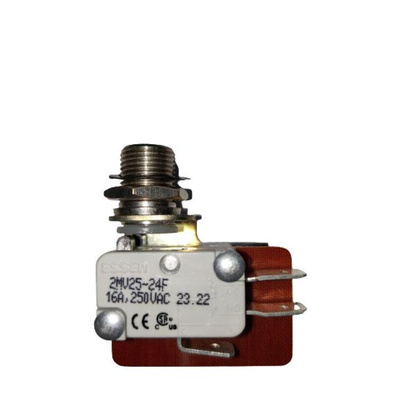

RS PRO Momentary Microswitch, Quick Connect Terminal, 16A @ 250V ac, DPDT, IP40

RS PRO 2NO/2NC Heavy Duty Miniature Micro Switch (16 A @ 250V)

The RS PRO versatile miniature Momentary Micro Switch is suitable for use with heavy duty applications and is compatible with all industry standard V3 switches. Featuring a Momentary action actuator and a screwed sleeve for single hole mounting and quick connect terminals for a fast and reliable connection.
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent micro switch ideal for a range of environments and applications.
RS PRO versatile Micro Switches are ideal for many heavy-duty applications including automotive vending machines, telecommunications equipment, security instrumentation, conveyors and machine tools.

Features and Benefits

• Contact Configuration DPDT


• Contact Arrangement 2NO + 2NC


• 30% Glass filled flame retardant thermoplastic case (UL94 V0)


• Positive snap action


• Silver contacts


• Silver plated quick connect terminals (6.35 x 0.8mm)


• Total weight of 28.7g


• Single hole mounting via a 12.5mm hole (locknut supplied)

Approvals and Standards: CE, CSA, UKCA, IEC 1508-1
