RS PRO Long Overtravel Microswitch, Quick Connect Terminal, 6A @ 250V ac, SPDT, IP40

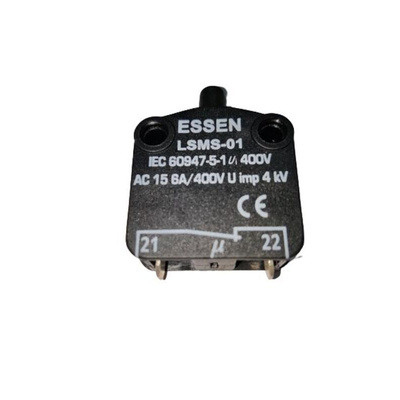

RS PRO 1NC Miniature Plunger Micro Switch (6 A @ 400V)

The RS PRO miniature Micro Switch is designed for installation in hard to access, hard to reach areas due to its compact size and shape and long electrical and mechanical life.
Designed with a snap action 1NC contact arrangement and faston terminals the RS PRO micro switch is quick and easy to install and features 2 contact configurations for flexibility across applications.
With a flame retardant case and long overtravel plunger actuator this Micro switch operates well in harsh and heavy-duty environments and is ideally suited to applications including automatic control functions and automatic doors.
The micro switch features silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Plunger switch ideal for a range of environments and applications.

Features and Benefits

• Plunger actuator


• Contact Configuration SPDT


• Contact Arrangement 1NC


• 30% Glass filled flame retardant thermoplastic case and plunger (UL94 V0)


• Snap action


• Silver contacts


• Silver plated faston terminals (6.3mm)


• Side mounted on flat surface with 2 x M4 screws


• Total weight of 9.8g

Approvals and Standards: CE, CSA, UKCA, IEC 60947-5-1
