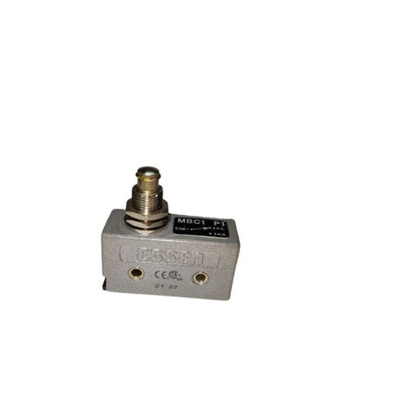

RS PRO Spring Plunger Microswitch, Screw Terminal, 15A @ 250V ac, SPDT, IP40

RS PRO 1NO/1NC Miniature Plunger Micro Switch (15 A @ 125/250V)

The RS PRO miniature Spring Plunger Micro Switch features a Zinc alloy Die Cast case with a Beryllium Copper trident spring operating mechanism for a hard-wearing design concentrating on reliability and consistency.
The RS PRO miniature Micro Switch is designed with a snap action 1NC/NC contact arrangement and Nickel plated M3 Brass terminal screws (located in the 4.0mm wiring channel) protected and insulated by the removable Phenolic thermo-setting plastic base.
The micro switch features silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Plunger switch ideal for a range of environments and applications.
Mounted via single hole mounting for the screwed plunger sleeve and two side mounting holes of 3.66mm for mounting the case.

Features and Benefits

• Plunger actuator


• Contact Configuration SPDT


• Contact Arrangement 1NO/1NC


• Zinc alloy Die Cast case with Phenolic base


• Snap action


• Silver contacts


• Nickel plated M3 Brass screw terminals


• Side mounted


• Total weight of 91g

Approvals and Standards: CE, CSA, UKCA, IEC 1508-1
