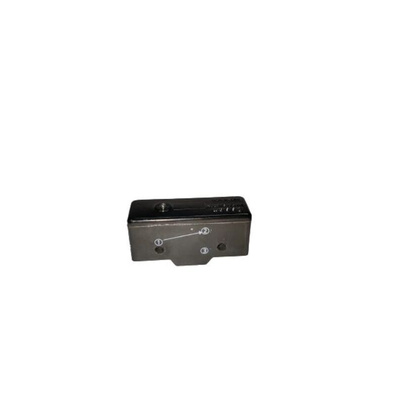

RS PRO Pin Plunger Microswitch, Solder Terminal, 15A @ 250V ac, SPDT, IP40

RS PRO 1NO/1NC Miniature Pin Plunger Micro Switch (15 A @ 125/250/440V)

The RS PRO miniature Micro Switch features a Phenolic thermo-setting plastic case with a Beryllium Copper trident spring operating mechanism for a hard-wearing design with very little movement.
The RS PRO Micro Switch is designed with a snap action 1NO/NC contact arrangement with solder tag terminals secured by M3 screws and can be easily mounted via two 3.66mm side mounting holes.
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Pin Plunger switch ideal for a range of environments and applications.

Features and Benefits

• Pin Plunger actuator


• Contact Configuration SPDT


• Contact Arrangement 1NO/1NC


• Phenolic thermosetting plastic case


• Snap action


• Silver contacts


• Solder tag terminals


• Side mounted


• Total weight of 23g

Approvals and Standards: CE, CSA, UKCA, IEC 1508-1
