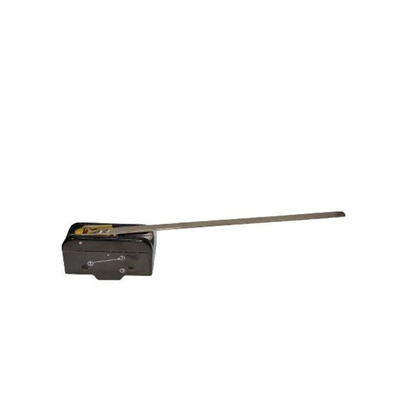

RS PRO Long Straight Lever Microswitch, Screw Terminal, 15A @ 250V ac, SPDT, IP40

RS PRO 1NO/1NC Miniature Lever Micro Switch (15 A @ 125/250/440V)

The RS PRO miniature Micro Switch features a Phenolic thermo-setting plastic case with a Beryllium Copper trident spring operating mechanism for a hard-wearing design and a stepped base allowing maximum creepage between terminals.
The RS PRO Micro Switch is designed with a snap action 1NO/NC contact arrangement with Nickel plated Brass screw terminals and can be easily mounted via 2 x 3.66mm holes on the side of the unit.
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Lever switch ideal for a range of environments and applications.

Features and Benefits

• Extra long Stainless Steel lever with a radius of 150mm


• Contact Configuration SPDT


• Contact Arrangement 1NO/1NC


• Phenolic thermosetting plastic case


• Snap action


• Silver contacts


• Nickel plated Brass screw terminals


• Side mounted


• Total weight of 40.2g

Approvals and Standards: CE, CSA, UKCA, IEC 1508-1
