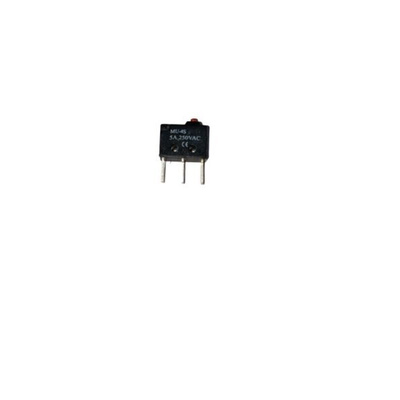

RS PRO Plunger Microswitch, Quick Connect Terminal, 7A @ 250V ac, SPDT, IP40

RS PRO 1NO/1NC Ultra Miniature Plunger Micro Switch (5 A @ 250V)

The RS PRO Plunger Micro Switch features an ultra-miniature, lightweight design with a total weight of only 1.0g and a Glass filled flame retardant Thermoplastic case for a robust and extremely compact ultra-miniature Micro Switch.
The RS PRO ultra-miniature Micro Switch is designed with a snap action 1NO/NC contact arrangement with Silver plated Copper Alloy terminals and can be easily mounted on a flat service using 2 x M2 screws.
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Plunger switch ideal for a range of environments and applications.

Features and Benefits

• Plunger actuator with 2mm quick connect tabs


• Contact Configuration SPDT


• Contact Arrangement 1NO/1NC


• Glass filled flame retardant thermoplastic (UL94-V0) case


• Snap action


• Silver contacts


• Sliver plated terminals


• Total weight of 1.0g

Approvals and Standards: CE, CSA, UKCA, IEC 1508-1

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
