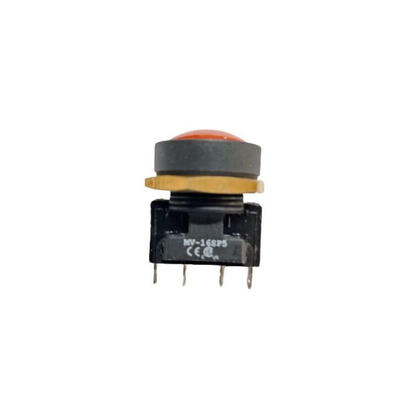

RS PRO Push Button Microswitch, Solder Terminal, 10A @ 250V ac, SPDT, IP67

RS PRO 1NO/1NC Miniature Momentary Action Push Button Micro Switch (10 A @ 250V)

The RS PRO double-break Micro Push Button Switch is constructed from Glass filled flame retardant Thermoplastic case and Bezel with a spring controlled pivoted mechanism enabling rapid contact changeover.
The RS PRO miniature Push Button Micro Switch is designed with a snap action 1NO/NC contact arrangement with Tin plated Copper Alloy terminals and can be easily panel mounted though a 16mm cut-out
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Push Button Micro Switch ideal for a range of environments and applications.

Features and Benefits

• Push button actuator with solder terminals


• Panel mounting via 16mm cut out


• Contact Configuration SPDT


• Contact Arrangement 1NO/1NC


• Glass filled flame retardant thermoplastic (UL94-V0) case and bezel


• Snap action


• Silver contacts


• Tin plated terminals


• Total weight of 8.9g

Approvals and Standards: CE, CSA, UKCA, IEC 1508-1
