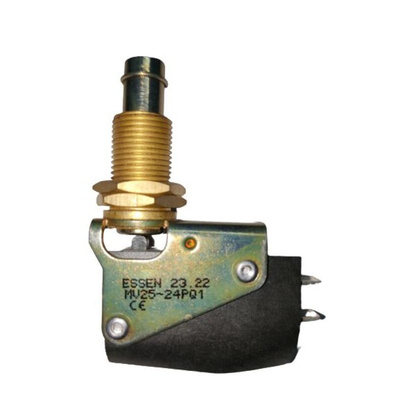

RS PRO Spring Plunger Microswitch, Quick Connect Terminal, 16A @ 250V ac, SPDT, IP40

RS PRO 1NO/1NC Heavy Duty Miniature Micro Switch (16 A @ 250V)

The RS PRO versatile miniature Plunger Micro Switch is suitable for use with heavy duty applications and is compatible with all industry standard V3 switches. Featuring a Spring Plunger actuator with 6.35mm x 0.8mm quick connect terminals for a reliable and
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Spring Plunger switch ideal for a range of environments and applications.
RS PRO versatile Micro Switches are ideal for many heavy-duty applications including automotive vending machines, telecommunications equipment, security instrumentation, conveyors and machine tools.

Features and Benefits

• Spring Plunger actuator


• Contact Configuration SPDT


• Contact Arrangement 1NO + 1NC


• 30% Glass filled flame retardant thermoplastic case (UL94 V0)


• Positive snap action


• Silver contacts


• Silver plated quick connect terminals (6.35 x 0.8mm)


• Total weight of 35.4g


• Single hole mounting via a 12.5mm hole (2 x locknut supplied)

Approvals and Standards: CE, CSA, UKCA, IEC 1508-1
