440F-A1301, Allen Bradley Guardmaster Sensor Actuator Cable

Closing Caps, Connector & Cable and Terminators

The Safedge can be cut into a number of lengths to guard different points. Closing Caps, Cable Connectors and Terminators (resistors) can be used to seal the Safedge system.

Closing Caps

stock no. 249-6172 is used to close 0110N profiles
stock no. 249-6239 is used to close 1610N profiles

Connector & Cable

stock no. 249-7210 is 1m long

Terminators

stock no. 873-2174 is a 6k resistor (yellow) for series termination
stock no. 873-2178 is a 15k resistor (blue) for parallel termination

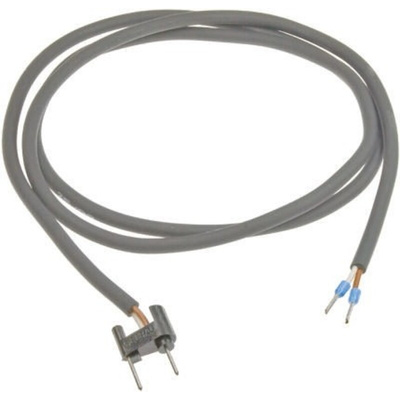

Allen Bradley Guardmaster Adapter For Safedge Light Curtain, Connection Cable, 1m Length - 440F-A1301

Finish wiring your contact-based safety devices with this connection cable from Rockwell Automation's Allen Bradley Guardmaster series. It supplies power from control units to sensors, removing the need for an external energy supply and keeping your system simple. The unit delivers signals directly to your controller to help achieve response times of 13ms and ensure your system stops faults quickly. As it supports horizontal and vertical connections to your sensor, this cable is a versatile choice that fits in with the needs of your setup.

• 1m length reduces cable clutter
• Colour-coded conductor cores make for easy wiring identification
• Slim outer diameter of 5mm fits into low-profile applications
• Integrated two-pin connector and ferrules for quick connections

Standards and Certifications

• CE
• UL
• UKCA

How do I know if I've properly connected this cable?

The cable's integrated connectors help to achieve a secure connection. For diagnostic purposes, the system's control unit features LED indicators to check the security of your connection. A green light means you've connected the cable properly, while a yellow LED indicates a fault.
