423915, Burkert Compact Mount Flow Controller, Analogue, Pulse, Totalizer Output, 12 → 30 V dc, DN 15 → 50 mm Pipe, Регулятор потока

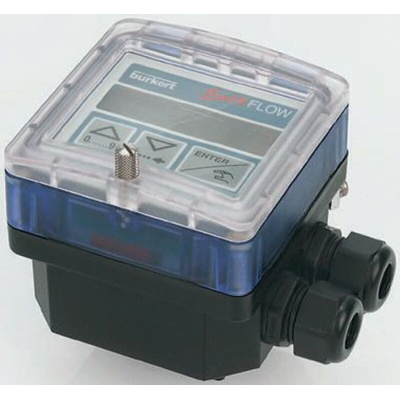

Burkert Flow Transmitter

The Burkert flow transmitter has an output current of 4-20mA and a cable gland electrical connection device. It is designed for continuous flow measurement and batch control. It is specially designed for use in neutral and aggressive, solid-free liquids. The transmitter is made of a compact fitting and an electronic module that can be quickly and easily connected by a bayonet. The controller is designed using a plastic-fitting system (PVC, PP, PVDF) ensures the simple installation of the transmitters into all the pipes from DN15 to DN 50. The display and menu-guided operating elements allow a customized adjustment of all the measuring parameters like multi-language, various engineering units and customized measuring ranges, teaching mode- simulation mode.

Features and Benefits

Signal pickup through induction coil - plastic paddle wheel
Easy System integration by easy LINK provides low cost of ownership
Easy commissioning due to multi-language, menu-guided operation
Shows both, flow rate and volume (2 totalizers)
Simulation: all the output signals provided without real flow
2 alarm relays
Pulse output on relay reed
The supply
Fittings available for all the standard hydraulic interfaces

Applications

Flow measurement and dosing control
Water treatment and process technology
Cooling water monitoring
Industrial wastewater treatment
Auxiliary plants irrigation
Ideal system solutions for pure water and chemical aggressive liquids

Certifications

IP65 rated
EN 175301803
DIN 43650
