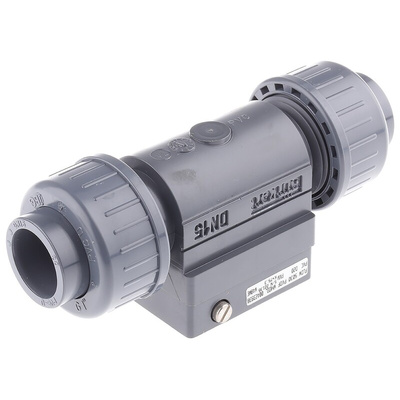

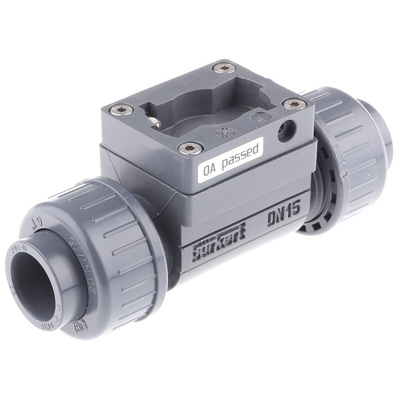

423938, Burkert PVC In-line Flow Sensor Fitting 1/2in Straight Flow Adapter 1 in Rc

Plastic S030 In-Line Flow Adaptors For Use With 8025, SE35, SE32, SE30 and 8021 flow controllers

In-line flow adaptors incorporating paddle wheel transducer which is set in rotation when liquid flows through the pipe.

Bayonet sensor connection enables sensor to be removed without disturbing the pipe work
Interfaced to pipework via solvent cement coupling
Measuring range; from 0.3m/s (AF>1//2 in. pipe, 0.3 fps flow velocity), 0.1 to 10m/s (0.3 to 32.8 fps)
Repeatability; 0.45% of measured value
O-ring material; FPM standard

Datasheet

Burket Sensor Overview
