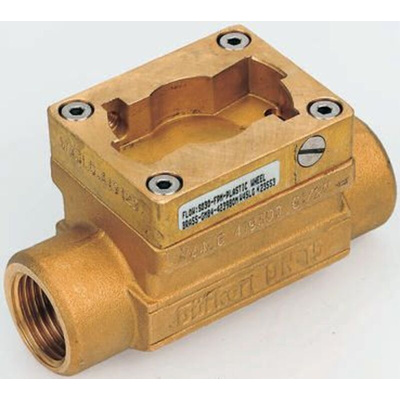

423981, Burkert Brass Pipe Fitting, Straight In-Line Flow Sensor

Brass S030 In-Line Flow Adaptors For Use With 8025, SE35, SE32, SE30 and 8021 flow controllers

In-line flow adaptors incorporating paddle wheel transducer which is set in rotation when liquid flows through the pipe.

G-port connection (internal thread)
PVDF paddle wheel and ceramic axis and bearing
Measuring range from 0.3 m/s (AF> 1//2 inch pipe, 0.3 fps flow velocity), 0.1 to 10 m/s (0.3 to 32.8 fps)
Repeatability 0.45 % of measured value
O-ring material; FPM standard
