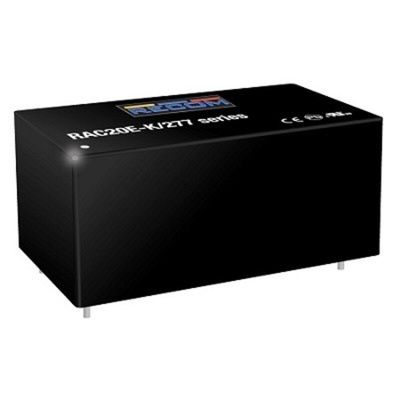

Recom, AC-DC Converter 4-Pin RAC20E-12SK/277

RECOM AC-DC Converter, 305V AC Maximum Input Voltage, 12V DC Maximum Output Voltage - EK Series - RAC20E-12SK/277

Need to change alternating current into direct current in a flash? Choose this AC-DC converter from RECOM. With a maximum start-up time of 150ms, it gets things moving fast. A versatile input voltage range between 85 and 305V AC means it's compatible with standard power supplies. Thanks to inbuilt 4kV isolation and overvoltage protection, you can trust this converter to prevent the risk of damage caused by electrical surges. Compact dimensions of 52.7 (L) x 27.6 (W) x 23mm (H) mean it takes it minimal space on your PCB. Plastic housing resists abrasion in demanding industrial settings to deliver a long service life.

Features & Benefits

• 83% conversion efficiency, so it's an energy-conscious choice
• Broad operating temperature range between -40°C and +50°C for use in harsh industrial settings
• Mean time between failures of 830,000 hours, so you can count on long-lasting performance

Applications

• Industrial power supplies
• Automotive workshops
• Medical equipment

Can I use this converter in humid conditions?

Yes. This converter operates in a relative humidity range between 20% and 90% in non-condensing environments, so it functions in humid conditions.

Datasheet - RAC20E-12SK/277
