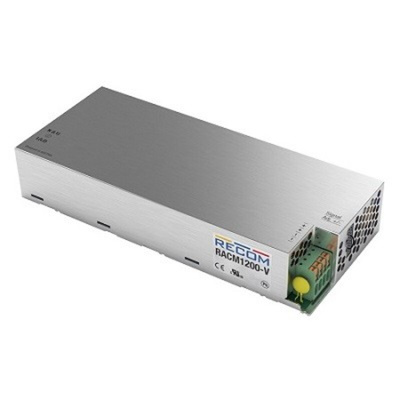

Recom, AC-DC Converter 40A, 30 → 36 Vdc 20-Pin RACM1200-36SAV/ENC

RECOM AC-DC Converter, Aluminium Baseplate, 63Hz Operating Maximum - RACM1200-V Series - RACM1200-36SAV/ENC

Need a solution for regulating power in your electrical system? This AC-DC converter from RECOM keeps things running with a hiccup. It takes AC inputs between 80 and 264V and translates them into a rock-solid 36V DC output to keep your electronic applications moving. Thanks to its peak efficiency of 95%, it's an energy-saving choice. A cooling baseplate supports heat transfer, which means this device can deliver up to 1000W of power without the need for a fan. With sufficient airflow, the power output can be boosted to 1200W for up to 10 seconds if needed.

Features & Benefits

• IP20 rating indicates it's touch-proof, for safe handling during installation and maintenance
• Compact dimensions of 228 (L) x 96.2 (W) x 40mm (D), so it won't take up a lot of space in your setup
• Broad operating temperature between -40°C and +80°C for use in heavy-duty industrial or medical settings

Applications

• Industrial systems
• Manufacturing plants
• Medical equipment

What type of short-circuit protection does this product have?

This device's SCP features auto recovery to get your system up and running again in a jiffy.
