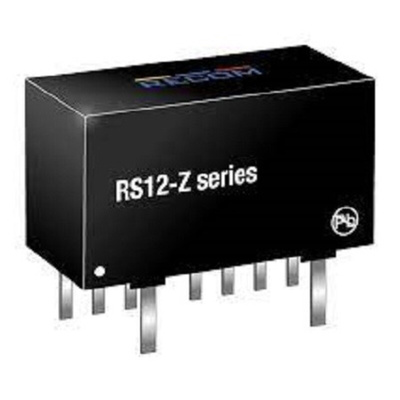

Recom, AC-DC Converter 8-Pin, SIP8 RS12-2405SZ

RECOM AC-DC Converter, 580mA Current Limit, Through-Hole Mounting - RS12-Z Series - RS12-2405SZ

Need to switch things up? Choose this AC-DC converter from RECOM to get the right power to the right place. It turns an input voltage range of 9 to 36V DC to a reliably steady 5.5V output. An 88% efficiency rating means this is achieved with much heat being produced as a by-product, so you can trust the unit to run cool. Thanks to its compact dimensions of 21.8 (L) x 12.1 x (W) x 9.6mm (H), it slots neatly into setups where space is tight. A wide operating temperature range of -40°C to +75°C means this converter easily copes with demanding conditions.

Features & Benefits

• Mean time between failures of 1,338,000 hours ensures it's a long-lasting solution
• Overload and short-circuit protection guards your equipment from electrical damage

Applications

• Automotive manufacturing
• Medical devices
• Telecommunication systems

How long does it take to boot up this converter?

It has a power-up time of 15ms and an on/off control time of 7ms, so you can rely on it for minimum downtime and to keep the show on the road.

How do I mount this converter?

The unit's pins make through-hole mounting to a PCB a walk in the park.

Datasheet - RS12-2405SZ
