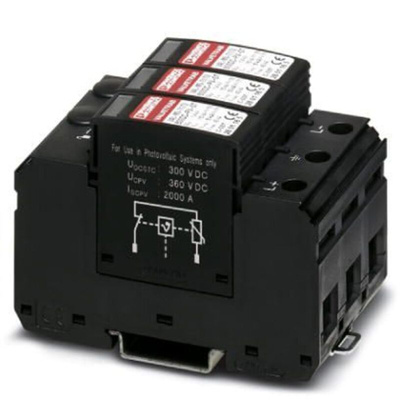

2801163, Phoenix Contact Three Phase Surge Arrester, 40kA, = 2.6kV, DIN Rail Mount

The phoenix contact Lightning/surge arrester type 1/2 - VAL-MS-T1/T2
600DC-PV/2+V is a device for 2-pos. isolated and grounded 600 V DC
PV voltage systems, for DIN rail mounting, 3-pos. base element, three pluggable temperature monitored protective elements, status message at each plug. It has been quality proven millions of times over in the widest range of applications. Rapid installation with bridges, thanks to industry-standard overall width of 1 HP. Easy testing and insulation measurement.

IEC test classification - PV I / II PV T1 / T2
EN type - T1 / T2
Distance between live and grounded parts - 8 mm
Product type - PV arrester
Installation location - Interior
Accessibility - Accessible
Connection configuration - Y configuration
SPD failure behaviour - OCFM
Surge protection fault message - optical
Overvoltage category - III
Pollution degree - 2

Datasheet - 2801163
