2801164, Phoenix Contact Single Phase Surge Arrester, 40kA, = 2.6kV, DIN Rail Mount

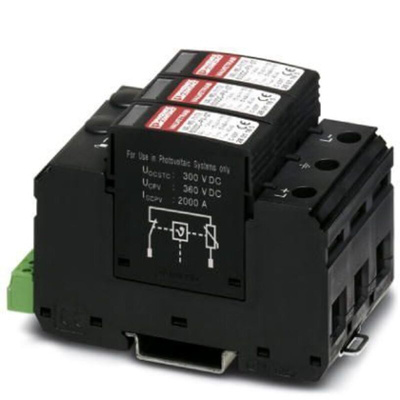

The phoenix contact Lightning/surge arrester type 1/2 - VAL-MS-T1/T2
600DC-PV/2+V-FM is a device for 2-pos. isolated and grounded 600 V DC PV voltage systems, for DIN rail mounting, 3-pos. base element with remote indication contact, three pluggable temperature-monitored protective elements, status message at each plug. It has been quality proven millions of times over in the widest range of applications. Rapid installation with bridges, thanks to industry-standard overall width of 1 HP. Easy testing and insulation measurement.

IEC test classification - PV I / II PV T1 / T2
EN type - T1 / T2
Distance between live and grounded parts - 8 mm
Installation location - Interior
Installation location of the disconnect device -Internal
Accessibility - Accessible
Connection configuration - Y configuration
SPD failure behaviour - OCFM
Surge protection fault message - Optical, remote indicator contact
Overvoltage category - III
Pollution degree - 2
Connection name - Remote fault indicator contact
Switching function - Changeover contact Connection method - Screw connection
Screw thread - M5
Tightening torque - 3 Nm (1.5mm² to 16mm²) 4.5 Nm (25mm² to 35mm²)
Stripping length - 16 mm
Conductor cross section flexible - 1.5mm²to 25 mm²

Datasheet - 2801164
