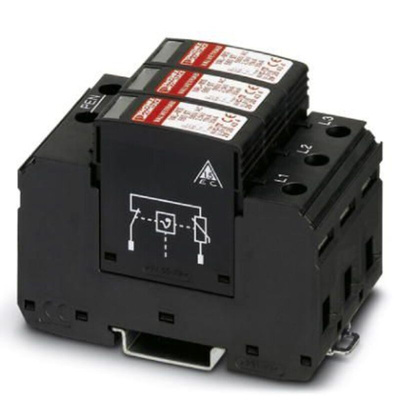

The phoenix contact Type 2 surge arrester - VAL-MS 580/3+0 is a surge arrester for 4-conductor power supply systems (L1, L2, L3, PEN). It consists of a base element and protective connectors, for mounting on NS 35. It has been quality proven millions of times over in the widest range of applications. Rapid installation with bridges, thanks to industry-standard overall width of 1 HP. Easy testing and insulation measurement. Wide range of applications due to various nominal voltages. High degree of modularity provides individual solutions for every application.
EN type - T2 Number of positions - 3
Surge protection fault message - optical
Overvoltage category - III
Pollution degree - 2
Nominal frequency fN - 50 Hz (60 Hz)
Connection method - Screw connection
Screw thread - M5
Tightening torque - 3 Nm (1.5 mm² to 16 mm²)
4.5 Nm (25 mm² to 35 mm²)
Stripping length - 16 mm
Conductor cross section flexible - 1.5 mm² to 25 mm²
Conductor cross section solid - 1.5 mm² to 35 mm²
Conductor cross section AWG - 15 to 2
Connection method - Fork-type cable lug
Conductor cross section flexible - 1.5 mm² to 16 mm²
Datasheet - 2920450| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
