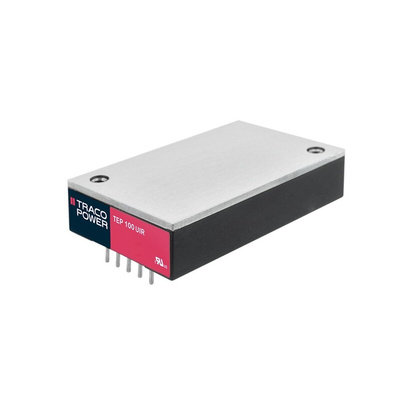

TRACOPOWER Power Supply, TEP 100-3615UIR, 24V dc, 4.2A, 100W, 1 Output, 9 → 25V dc Input Voltage

The Traco TEP 100UIR is a series of high-performance 100 Watt DC/DC converters with an ultra-wide 12:1 input voltage range. The TEP 100UIR comes in a compact, fully encapsulated quarter-brick (2.3”x1.45”x0.5”) package for highest reliability. The ultra-wide input voltage range lets system builders reduce the number of design channels where otherwise multiple input voltage configurations would be required. Thanks to its dedicated holdup circuit, the TEP 100UIR complies with extended holdup-time requirements without the need for bulky capacitors. The TEP 100UIR is EN 50155 certified for rolling stock applications, EN 61373 certified for mechanical shock and vibration and EN 45545-2 certified for fire behaviour. It comes with IEC/EN/UL 62368-1 safety approvals.

Ultra-wide 12:1 input voltage range 9–75, 14–160 VDC EN 50155 and EN 61373 certified Encapsulated quarter-brick (2.3”x1.45”x0.5”) package Extended holdup time with lowest capacitor volume EN 45545-2 fire behaviour –40°C to +85°C operating temperature Up to 3’000 VAC I/O-isolation Remote on/off and trim function Adjustable undervoltage lockout (UVLO), short-circuit protection (SCP), overvoltage protection (OVP) and over temperature protection(OTP) 3-year product warranty

Datasheet - TEP 100-3615UIR
