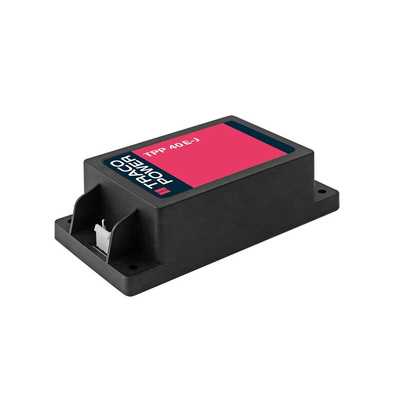

TRACOPOWER Power Supply, TPP 40-124E-J, 24V dc, 1.67A, 40W, 1 Output, 85 → 264V ac Input Voltage

The Traco TPP40E-J is a 40 Watt encapsulated AC/DC modules in a Chassis mount package. It features a reinforced double I/O isolation system according to latest medical safety standards (60601-1 3rd edition, 2 x MOPP). The leakage current is below 100 μA and makes the module suitable for BF (body floating) applications. The excellent efficiency of up to 93% allows a high power density and compact design (4.3” x 2.2”).

Compact encapsulated 40 Watt Chassis mount module (4.3"x2.2") I/O isolation 4000 VAC rated for 250 VAC working voltage Certification according to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP Risk management process according to ISO 14971 incl. risk management file Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3 Low leakage current <100 μA rated for BF applications Operating temperature –40°C to 80°C EMC compliance according to IEC 60601-1-2 4th edition and EN55032 class B Operating up to 5000m altitude 5-year product warranty

Datasheet - TPP 40-124E-J
