RS PRO Die Cast Aluminium Infeed Cap, 153mm x 6.5mm

RS PRO Aluminium Infeed Caps

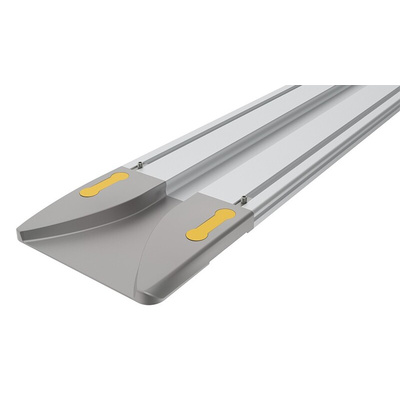

Use these Infeed caps in conjunction with the Aluminium Guiding Rails to create your ideal FIFO station for Dollies. These infeed caps are made from Aluminium die-casting and have fixing points for a secure attached to aluminium guiding rails and yellow screw covers with signal effect to indicate the infeed position for the castor wheels. During application, the caps are placed at either end of the guiding rails and have an extra wide funnel to guide one castor wheel within the First-in-First out system, making loading and unloading easier.

Features and Benefits

• For easier loading and unloading


• Ideal for FIFO stations with floor dollies


• Robust design


• Mounts directly to guiding rails


• Yellow screw cover - indicates the infeed position


• M6 countersunk screws

Material

• Aluminium die-cast


• Screw Covers: Plastic PC

Compatible components – Available separately

RS PRO 1200 mm Aluminium Guiding Rails – 250-0414

What do you get

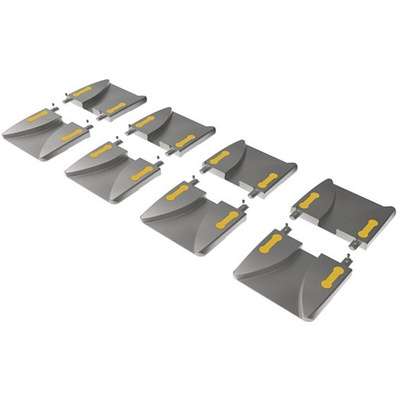

• 8 infeed caps


• 16 Screw covers


• 16 Hexagon socket set screws ISO 4027 - M6 x 8

Certificate

ROHS, REACH, POP, CFM

Applications

• Aluminium profiles construction


• Warehouse


• Distribution Centre


• Industrial
