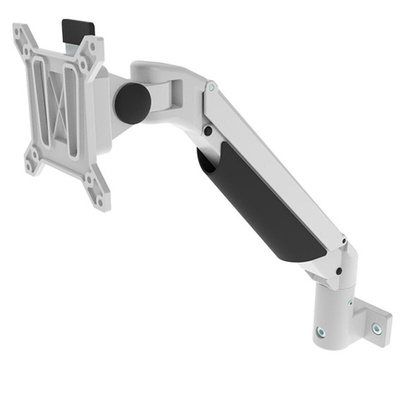

RS PRO Monitor Arm, Max 30in Monitor, 1 Supported Display(s) With Extension Arm

RS PRO Height Adjustable Monitor Support Arm - 4-Way Positioning

Introducing an adjustable monitor support arm from RS PRO. This support arm is designed for use with structural framing systems, offers 4-way positioning monitor support with full adjustability. Upon inspection the monitor arm is made from aluminium has a mounting plate for a screen with adjustable height and viewing angle, 90° screen rotation, 360° mounting flange for vertical and horizontal attachment with mounting adapter.

Feature and Benefits

• Aluminium Monitor mount


• Mounting plate VESA MIS-D 75/100 compatible


• 4-Way Positioning Arm


• 90 ° rotation


• 360 ° mounting flange


• Slot 8, 10


• Finish: Lacquer

Material

• Mounting plate VESA, removable: Steel / Plastic


• Monitor mount: Die-cast aluminium


• Cable management cover: Plastic


• Bearing shims and bushes: Plastic


• Mounting flange: Die-cast aluminium


• Mounting adapter: Die-cast aluminium


• Screws: Steel

What do you get

• Mounting plate VESA with 4 screws – M4 ´ 12, Phillips


• Monitor support 4-axis with cable management cover


• Mounting flange


• Mounting screw DIN 6912 – M8 ´ 25


• Mounting adapter


• Mounting screws DIN 6912 – M8 ´ 16


• Hexagon key, AF 3


• Hexagon key, AF 4

Standards

CFM Certified, POP Certified, REACH Certified, RoHS Certified

Applications

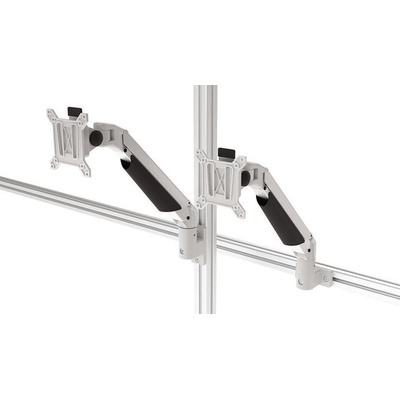

Structural Framing Systems

RS PRO Datasheet
