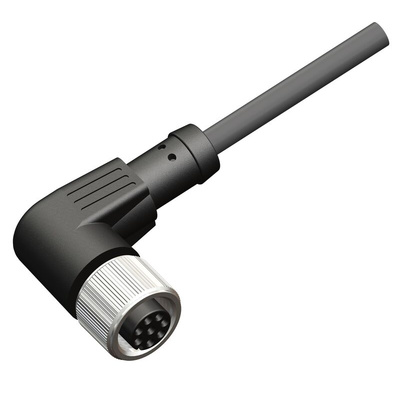

RS PRO Right Angle Female M12 to Unterminated Sensor Actuator Cable, 10m

RS PRO 8 Core Shielded Right Angle Female M12 Connector Assembly (Unterminated)

The RS PRO M12 single-ended multicore cable assembly features a tough and durable design for the safe and reliable transmission of data in harsh industrial settings.
Featuring braided shielding for a high level of protection, a Brass Nickel plated coupling nut for a secure fit and a Neoprene O-ring for peace of mind from moisture and liquid penetration. Finally, its wrapped in a sturdy, flexible chemical resistant Polyurethane (PUR) jacket, the RS PRO multicore cable assembly is built for the industrial environment.
The right-angle design of the M12 connector is perfect for use in hard to access areas, and the unterminated, partially stripped wires can be quickly and easily installed with minimum effort, ideal for industrial use in a wide range of automation and sensor equipment.

Features and benefits

• Right angle M12 connector to unterminated wires


• Shielded A coded cable


• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge


• Neoprene O-ring to keep out liquid and moisture


• Nickel-plated brass coupling nut secures the connection and resists corrosion


• 8 Core cable


• Length 10m


• Operating temperature range from -25°C to +75˚C


• Voltage rating of 30V


• Brass contacts with Gold Flash plating


• Current rating of 2A


• Polyurethane (PUR) sheath


• IP67 rating

Approvals and Standards: IEC 61076-2-101

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
