RS PRO Straight Male M12 to Unterminated Sensor Actuator Cable, 2m, Кабель

RS PRO 8 Core Shielded Male M12 Connector Assembly (Unterminated)

The RS PRO M12 single-ended multicore cable assembly features a tough and durable design for the safe and reliable transmission of data in harsh industrial settings.
Featuring braided shielding for a high level of protection, a Brass Nickel plated coupling nut for a secure fit and a Neoprene O-ring for peace of mind from moisture and liquid penetration. Finally, its wrapped in a sturdy, flexible Polyurethane (PUR) jacket, the RS PRO multicore cable assembly is built for the industrial environment.

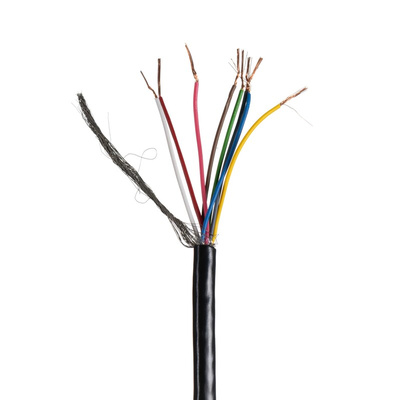

The Brass contacts are fitted complete with a Gold Flash plating and the unterminated, partially stripped wires can be quickly and easily installed with minimum effort, ideal for industrial use in a wide range of automation and sensor equipment.

Features and benefits

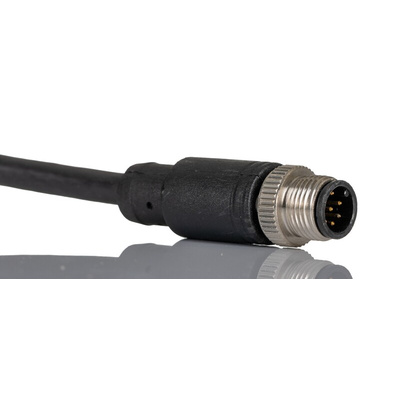

• M12 Male connector to unterminated wires


• Shielded A coded cable


• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge


• Neoprene O-ring to keep out liquid and moisture


• Nickel-plated brass coupling nut secures the connection and resists corrosion


• 8 Core cable


• Length 2m


• Operating temperature range from -25°C to +75˚C


• Voltage rating of 30V


• Brass contacts with Gold Flash plating


• Current rating of 2A


• Polyurethane (PUR) sheath


• IP67 rating

Approvals and Standards: IEC 61076-2-101

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS
