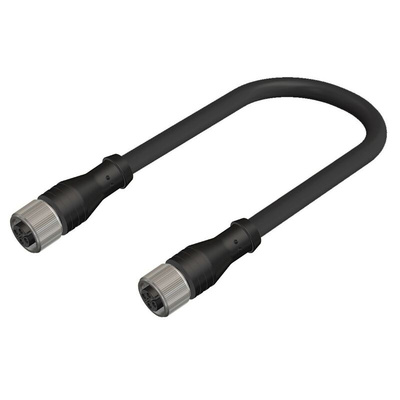

RS PRO Straight Female M12 to Straight Female M12 Sensor Actuator Cable, 5m

RS PRO 5 Core Shielded Straight Female M12 to Female M12 Connector Cable

The RS PRO M12 multicore cable assembly features a tough and durable design for the safe and reliable transmission of data in harsh industrial settings.
Featuring braided shielding for a high level of protection, a Brass Nickel plated coupling nut for a secure fit and a Neoprene O-ring for peace of mind from moisture and liquid penetration. Finally, its wrapped in a sturdy, flexible chemical resistant Polyvinyl Chloride (PVC) jacket, the RS PRO multicore cable is built for the industrial environment.
The RS PRO M12 cable is a straight Female to Female connector cable with Brass contacts complete with a Gold Flash plating, ideal for industrial use in a wide range of automation and sensor equipment.

Features and benefits

• Female to Female connector cable


• Shielded A coded cable


• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge


• Neoprene O-ring to keep out liquid and moisture


• Nickel-plated brass coupling nut secures the connection and resists corrosion


• 5 Core cable


• Length 5m


• Operating temperature range from -25°C to +75˚C


• Voltage rating of 60V


• Brass contacts with Gold Flash plating


• Current rating of 4A


• Polyurethane (PUR) sheath


• IP67

Approvals and Standards: IEC 61076-2-101
