RS PRO Straight Female M12 to Straight Male M12 Sensor Actuator Cable, 2m

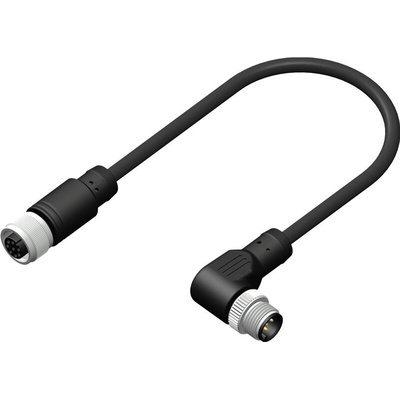

RS PRO 8 Core Female M12 to Right Angle Male M12 Connector Cable

The RS PRO M12 multicore cable assembly features a tough and durable design for the safe and reliable transmission of data in harsh industrial settings.
Featuring a Brass Nickel plated coupling nut for a secure fit and a Neoprene O-ring for peace of mind from moisture and liquid penetration. Finally, its wrapped in a sturdy, flexible Polyvinyl Chloride (PVC) jacket, the RS PRO multicore cable assembly is built for the industrial environment.
The RS PRO M12 cable has straight Female connector to a right-angle Male connector which is ideal for hard to access or tight areas, both with Brass contacts complete with a Gold Flash plating, ideal for industrial use in a wide range of automation and sensor equipment.

Features and benefits

• Straight Female to right angle Male connector cable


• A coded cable


• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge


• Neoprene O-ring to keep out liquid and moisture


• Nickel-plated brass coupling nut secures the connection and resists corrosion


• 8 Core cable


• Length 2m


• Operating temperature range from -25°C to +75˚C


• Voltage rating of 30V


• Brass contacts with Gold Flash plating


• Current rating of 2A


• Polyvinyl Chloride (PVC) sheath


• IP67 rating

Approvals and Standards: IEC 61076-2-101
