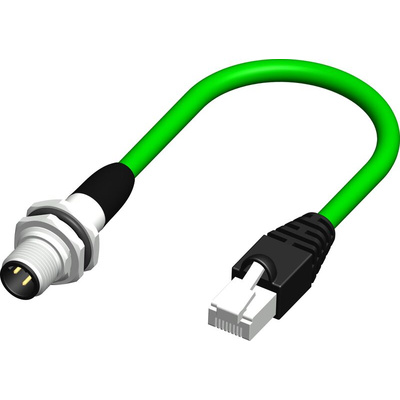

RS PRO Cat5e Straight Male M12 to Straight Male RJ45 Ethernet Cable, Braid, Green PVC Sheath, 0.5m

RS PRO Cat 5e Shielded Male M12 to RJ45 Connector Cable

The RS PRO Cat 5e M12 to RJ45 cable assembly is a standard twisted pair networking cable and features a tough and durable design for the safe and reliable transmission of data and computer networking in harsh industrial settings.
Featuring braided shielding for a high level of protection the M12 connector is complete with a Brass Nickel plated coupling nut and grip for a secure fit and a Neoprene O-ring for peace of mind from moisture and liquid penetration.
At the opposite end of the shielded cable is a hard wearing RJ45 connector with Phosphor Bronze contacts. Finally, the cable assembly, its wrapped in a sturdy, flexible Polyvinyl Chloride (PVC) jacket, the RS PRO Cat 5e cable is built for the industrial environment.
The RS PRO Cat 5e cable is a straight M12 Male to RJ45 connector cable designed for panel mounting and is ideal for industrial use in a wide range of automation and sensor equipment and particularly computer networking.

Features and benefits

• Transfer rate of 100Mb


• Female M12 to RJ45 connector cable


• Shielded D coded cable


• Wire size of AWG 22


• 2 x 2 Twisted Pair


• 4 Pole


• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge


• Neoprene O-ring to keep out liquid and moisture


• Nickel-plated brass coupling nut secures the connection and resists corrosion


• Length 0.5m


• Operating temperature range from -25°C to +85˚C


• Voltage rating of 60V


• Current rating of 1.5A


• Polyvinyl Chloride (PVC) sheath


• M12 Connector IP67 rating


• RJ45 Connector IP20

Approvals and Standards: IEC 61076-2-101
